National Oilwell 80T-3M 1.75" x 3" Stroke 80 Hp Triplex Fluid Service Pump

National Oilwell 80T-3M 1.75" x 3" Stroke 80 Hp Triplex Fluid Service Pump

Contact us for price

Location:Oklahoma City, OK

orCall 1-800-580-6637

Description

‘Good Used’ 80T-3M National-Oilwell Triplex Pump Assm. w/ Forged Steel Fluid End, Pump powered by a 3054C Caterpillar Diesel Industrial Power Unit Package complete Hurst Manual 4-Speed Transmission assm. with shifter handle into a National Gear Reducer assm. (2.6:1 ratio)

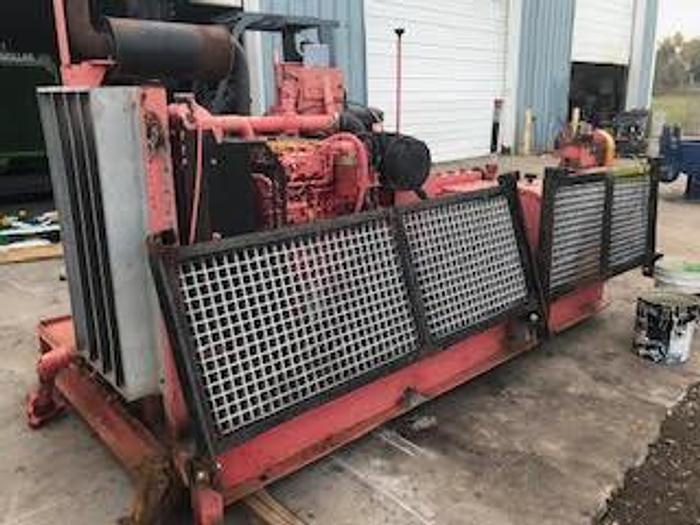

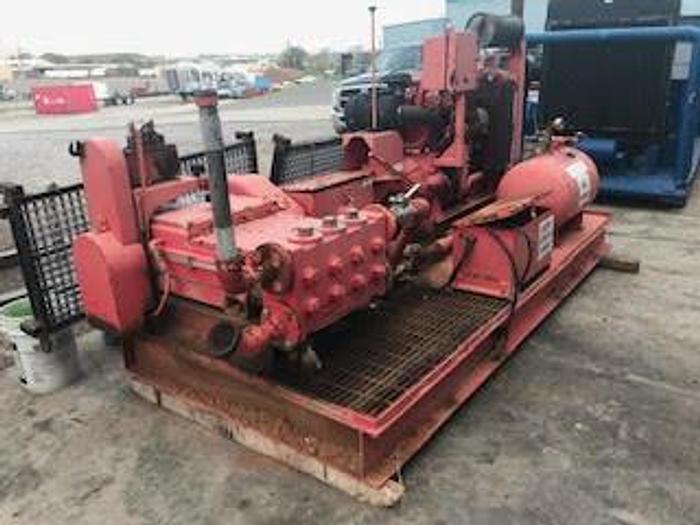

This powered pump package is master skid mounted on heavy duty 12’ x 6’ oilfield type skid with full fluid containment, diamond floor plate under power unit and grading under mud pump. The pump is driven by a Caterpillar 3054C engine with a Hurst Manual 4-Speed Transmission assm. with shifter handle and coupling into a National heavy duty 2.6:1 gear reducer assembly. The master skid is equipped with diesel fuel tank, battery box and has full fluid containment. Pump is equipped with plunger lubrication system consisting of relief valve, needle valves, echeck valves and ball valves.


Pump rated 80 h.p. @ 500 r.p.m.

Pump Serial No. 63355

Gear Reducer Serial No. 63355

Gear Reduction Ratio  3.50 : 1

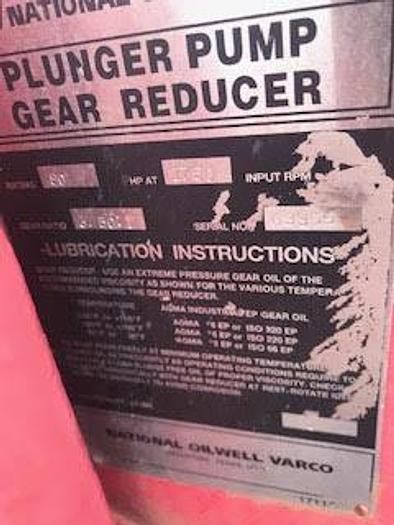

Gear Reducer Rated 80 HP @ 1750 Input R.P.M.

Fluid End Serial No. 63089-M

Pump Performance:  1.75” Plungers will Produce 47 Gallons Per Minute with Max. 2,633 PSI pressure



Engine rated 95 b.h.p. @ 1800 r.p.m.

Serial No. 33788           Arrangement No. 23-01455



Hours:  01,836.6



Engine will come packaged complete with radiator assm. through PTO clutch and include the following:



* 12-VOLT ELECTRIC STARTER

* 12-VOLT ALTERNATOR

* BATTERY & CABLES W/ BATTERY BOX

* RADIATOR COOLED WITH 4.5' CAT / GENERAL RADIATOR ASSM.

* 16" SUCTION TYPE FAN BLADE

* 10% POWER UNIT MECHANICAL GOVERNOR CONTROL

* STANDARD SAFETY SHUT-DOWNS

* COMPLETE ENGINE INSTRUMENT PANEL (PRESSURE, TEMP., AMPS, ETC.)

* DRY TYPE AIR CLEANER WITH BONNET & SERVICE INDICATOR

* EXHAUST SYSTEM W/ INDUSTRIAL SILENCER

Specifications

ManufacturerNational Oilwell
Model80T-3M 1.75" x 3" Stroke 80 Hp Triplex Fluid Service Pump
ConditionUsed
Serial Number63355
