Axon 500 (HT-400) Horizontal Triplex Mud PUmp Package

Axon 500 (HT-400) Horizontal Triplex Mud PUmp Package

Contact us for price

Location:Oklahoma City, OK

orCall 1-800-580-6637

Description

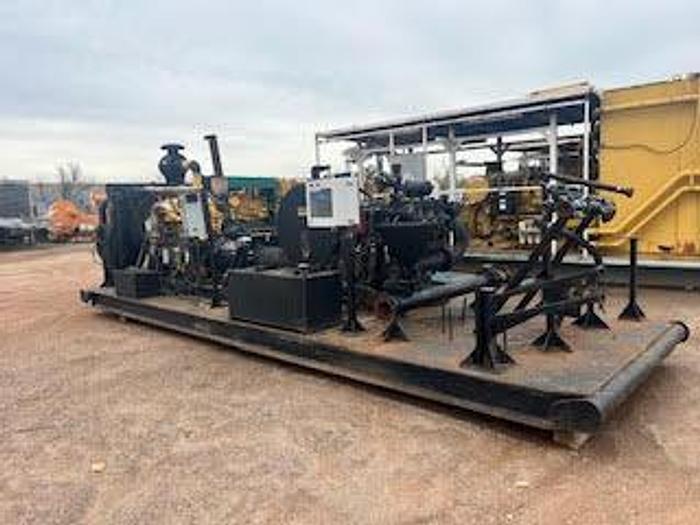

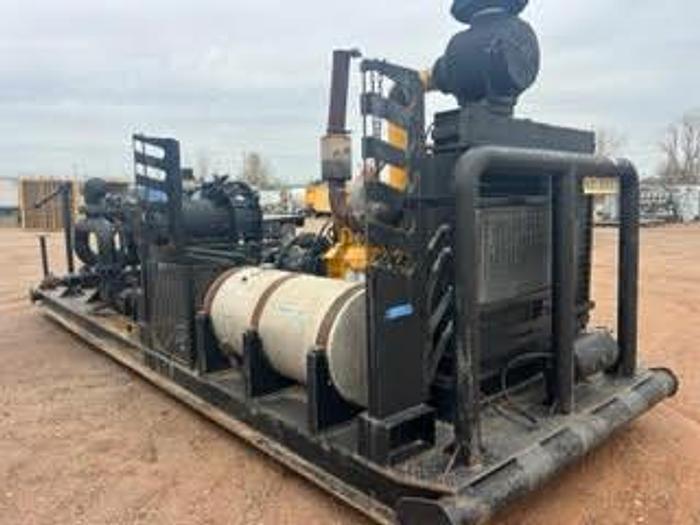

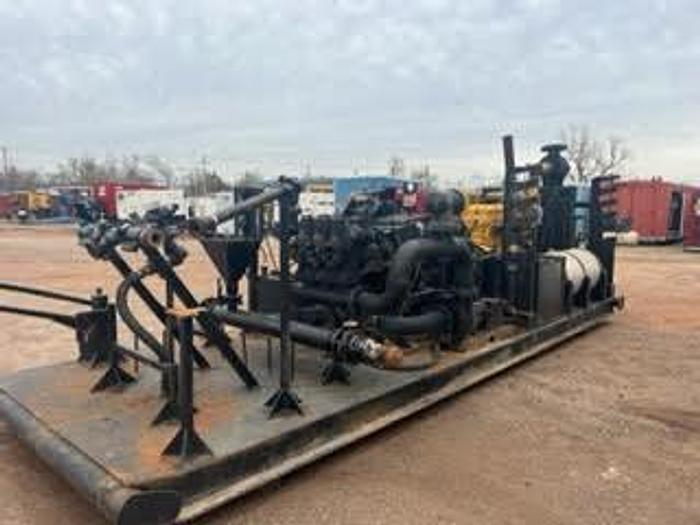

Axon 500 (HT-400 Copy) Horizontal Triplex Well Servicing mud pump package powered by 14.0L 60-Series 600 h.p. Detroit Diesel power unit coupled w/ an OFS-4700 Allison Automatic Transmission assm. mounted on a single oilfield type skid which will direct drive into pump rear mount worm gear drive through a driveline with disconnect. HT-400 mud pump will be equipped with an Air/Electric control station, 150-gal diesel fuel tank all unitized on (1) 8’ x 35’ oilfield master skid w/ loading hitches.

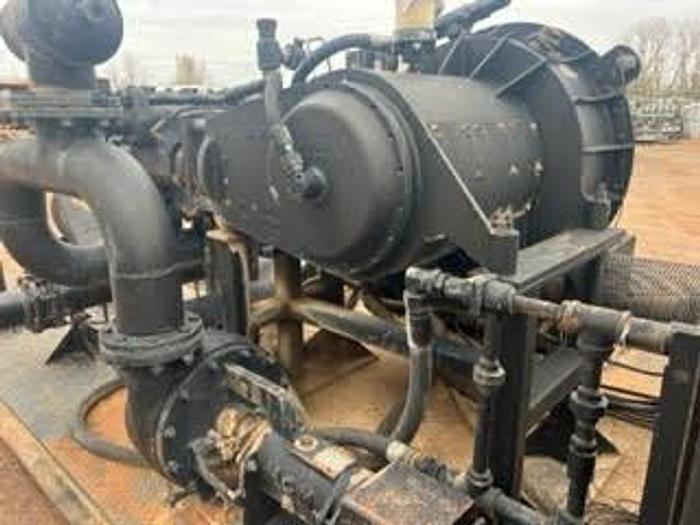

PUMP:   HD-500 Axon-Demay HORIZONTAL TRIPLEX MUD PUMP ASSM. COMPLETE W/ THE FOLLOWING:

SERIAL NO. #74999     PART NO. HT207P949              SIZE:  4-1/2”



* 3-PIECE FORGED FLUID END CHAMBERS COMPLETE WITH ALL NEW EXPENDABLES

                                    (3) INERMEDIATE RODS

                                    (3) SUB RODS

                                    (3) PISTON RODS

                                    (6) PISTON CLAMPS

                                    (3) 4.5” PLUNGERS

                                    (3) NEW CARBURIZED VALVES & SEATS

                                    (6) RETAINERS W/ HOLDERS AND INSERTS

                                    (6) POLY GASKETS

                                    (6) SPINOFF COVERS W/ WEDGES AND SPRINGS.



PUMP PERFORMANCE:                                   Plunger Size & Max. Discharge Pressure (psi)



Pump Speed    Max Input  Flow @       4” Plungers     4.5” Plungers   5" Plungers          6” Plungers

   S.P.M.             H.P.          100%

                                                            GPM    PSI       GPM    PSI            GPM    PSI       GPM    PSI

     75                  400                             65      10,000     98       7,000            153       4,500    221       3,000



Pump Speed    Max Input  Flow @       4” Plungers     4.5” Plungers   5" Plungers          6” Plungers

   S.P.M.             H.P.          100%

                                                            GPM    PSI       GPM    PSI            GPM    PSI       GPM    PSI

    275                 500                             360      14,000   454     11,200            560       9,000    810       6,250



POWER:          14.0 L Series 60 MTU DDEC V 600 hp DETROIT DIESEL



 ‘Used, Very Low Hour 14.0L Series 60 DDEC5  MTU Detroit Diesel Industrial Power Unit Package complete with 17’ Radiator assm. through SAE #1 flywheel bell housing & 14” Transmission type Flywheel

            S/N # 06R1060145        M/N6063-HV39 FAMILY ADDXL14.OVLD            Y.O.M.  2013   HOURS;


THIS UNIT COMES PACKAGED COMPLETE WITH THE ADDITION OF THE FOLLOWING:



* 24-VOLT ELECTRIC  or  150BM INGERSOL-RAND PNEUMATIC AIR STARTER RIGHT HAND

* 24-VOLT 95AMP CHARGING ALTERNATOR RIGHT HAND

* BENDIX TU-FLO AIR COMPRESSOR, GEAR DRIVEN

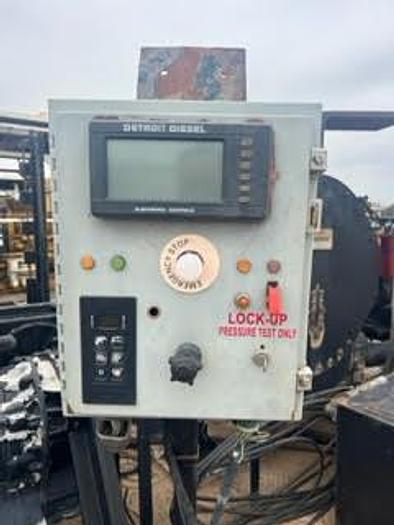

* ENGINE STARTING & CONTROL PANEL WITH E-STOP

* STANDARD DUAL OIL FILTERS (P/N 1R1808)

* STANDARD OIL COOLER

* LUBRICATING OIL

* EXHAUST MANIFOLD DRY, EXHAUST HEAT SHIELD

* GEAR DRIVEN CENTRIFUGAL JACKET WATER PUMP

* THERMOSTATS AND HOUSING

* TURBO CHARGER AND AIR TO AIR AFTERCOOLED

* TIER 2

* MECHANICAL DRIVE

* EXHAUST CONNECTION ELBOW

* CRANKSHAFT PULLEY

* CRANKCASE BREATHER

* PRIMARY & SECONDARY FUEL FILTERS (P/N 1R0749)

* HAND FUEL PRIMING PUMP

* EMS MAIN UNIT

* HIGH CAPACITY RADIATOR WITH LOW COOLANT LEVEL SENSOR, RADIATOR GUARD

* SAE NO. #1 FLYWHEEL HOUSING

* SAE NO. #1 14” INDUSTRIAL FLEX PLATE TYPE FLYWHEEL ASSM. (113 TEETH)

* AUXILLARY OIL COOLER FOR TRANSMISSION OIL COOLING

* AIR OVER ELECTRIC THROTTLE CONTROLS

* DRY-TYPE AIR CLEANER ASSM. W/ SERVICE INDICATOR

* EXHAUST SYSTEM COMPLETE WITH SPARK ARRESTORY TYPE MUFFLER & FLEX JOINT COUPLING

* INTAKE SUCTION WITH BUTTERFLY VALVE

* REMOTE OPERATORS PANEL WITH ALL ENGINE & TRANSMISSION INSTRUMENTATION, GAUGES, TACHOMETER, STROKE COUNTER, TRANSMISSION AIR SHIFTER, ECT. WITH 75’ CABLE EXTENSIONS FOR REMOTE OPERATION FROM DRILLER’S CONSOLE

* HYDRAULIC POWERED OIL LUBRICATION PUMP FOR PLUNGERS P/B CHELSEA PTO ON TRANS.

* 150 GAL. DIESEL FUEL TANK

* 50 GAL. HYDRAULIC RESERVOIR TANK

* UNIT WILL BE DUAL SKID MOUNTED ON CUSTOM 2-PIECE SKID W/ LOADING HITCH.



TRANS:  4700-OFS ALLISON  Automatic Straight Through Power Shift Transmission assm.

Complete with Adaptation for DDC S-60 Engine including the following features:



* TC541 Torque Converter

* AJGC Controls

* No Retarder

* 4” Drip Pan

* 1810 Series Output Flange

* Top and Side Mount PTO Provisions

* Right Side Fill Tube, Dipstick & Bracket

* No Oil Cooler, Cooler Ports to Rear

* No Output Retarder

* Standard Rear Support Bracket, Facing Front

* HD Wide Ratio / 6-Speed Base Model

* 1 Sensor Harness Support Bracket

* Standard Output with 6T Tacho Provision

* 1810 Series Companion Flange – Threaded

* Engine Driven PTO Provision – Indy

* A5G Controls

* 4700 OFS Oil Field Series

* 4” OLS, Power Off to Neutral Programmed – AE Review Required

Specifications

ManufacturerAxon
Model500 (HT-400) Horizontal Triplex Mud PUmp Package
ConditionUsed
Serial Number74999
Stock NumberSW-2397
